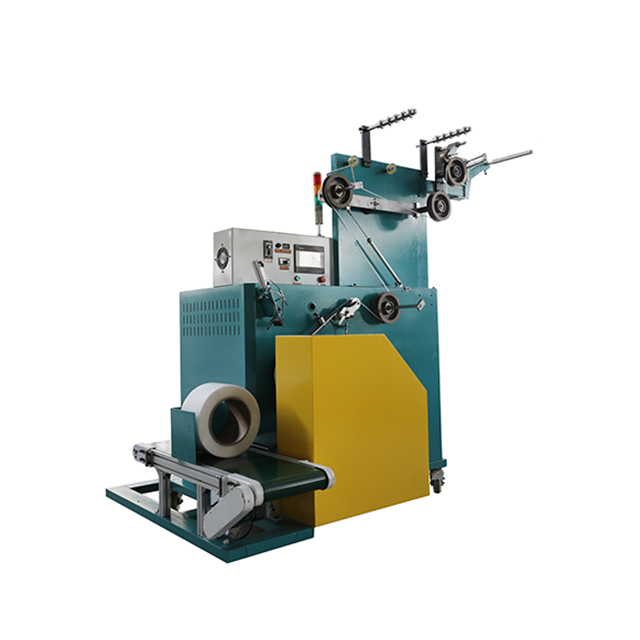

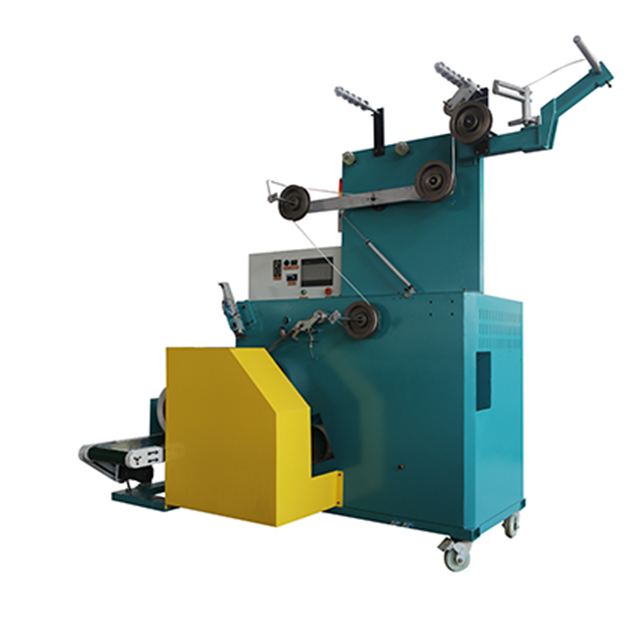

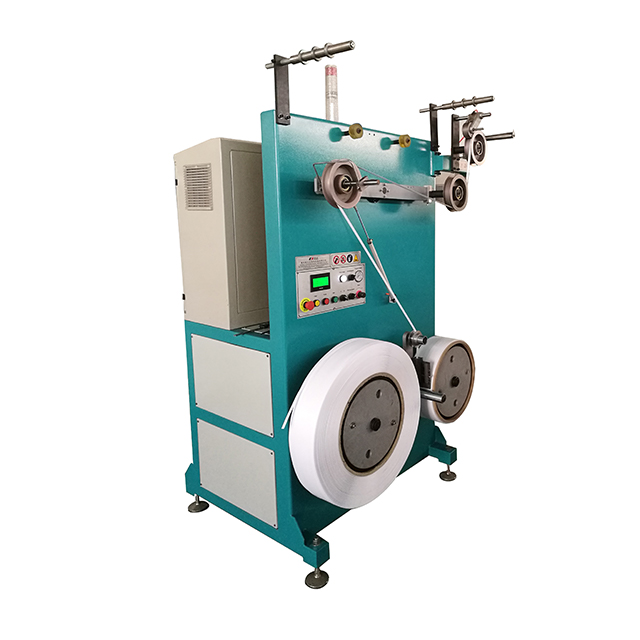

Single Station Winder for PET/PP Straps
Product description:
Single Station Winder, Semi-automatic winder:
• Servo motor controls winder displacement width and distance,winder displacement can be on the computer according to strap's specification.
• Inverter closed loop controls winding speed.
• Winding width can be set per specific requirement.
• Automatically adjust winding tension.
• Tape reel offers perfect winding curve.
• Winding range from 5mm up to 32mm straps.
• It is suitable for roll core diameter of 200mm and 405mm,other roll core size can be customized per requirement.
Technical parameter:
Max winding diameter | 800mm |
Max winding width | 300mm |
Max winding line speed | 220m/min |
Motor power | 1.1kw |
Winding displacement motor power | 750w |
